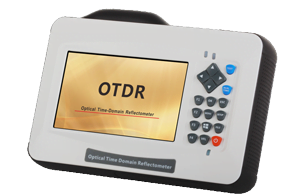

FHO3000 Series OTDR


FHO3000 series OTDR ensures accurate and complete fiber evaluation while the testing requires only one key to start, allowing anyone to proceed error-free testing. Its ease of use, low price, high resolution and compact size make it be a qualified tester in installation, operation and maintenance of optical networks, and also save you a lot of money and time.

Ideal for short fiber application:

It is hard to find a high cost effective OTDR to test short fibers. Normal Fault Locators in short spans lack the resolution while common OTDR are too large, expensive and complicated.

FHO3000 series OTDR from GRANDWAY meets this need by providing all features and performances required for installation and maintenance of short fibers in a compact and mini handheld test set. FHO3000 series OTDR represents an unmatched level of value and ease of use, but doesnt compromise performance.


  1. Hand-held and portable
  2. High cost performance
  3. 5-inch HD touch screen
  4. Simple interface and one-button testing
  5. Long working hours
  6. Support multi-languages


  1. CATV network testing
  2. Access network testing
  3. LAN/WAN network testing
  4. Metro network testing
  5. Lab and Factory testing
  6. Real-time troubleshooting


Number Items Description
① Port 1 Including OTDR testing port (FC/UPC), VFL Port (optional)×1, Power Meter Port (optional)×1 and touch pen×1
② Port 2 Including USB A type×2, micro-USB×1, SD card and charging port
③ Indicator Indicate test state or charging state
④ Navigator Move cursor menu or files
⑤ Test Button Averaging test (TEST) button and real-time test (REALTIME) button
⑥ Key Area F1~F4: select relevant sub-menu
OK: confirm button
ESC: cancel button
MENU: back to main menu
SETUP: enter testing parameter setting interface
FILE: enter file manager
    : take screen capture
    : power button
⑦ Support Plate Support OTDR on the level surface

HD Touch screen

Data Manager
